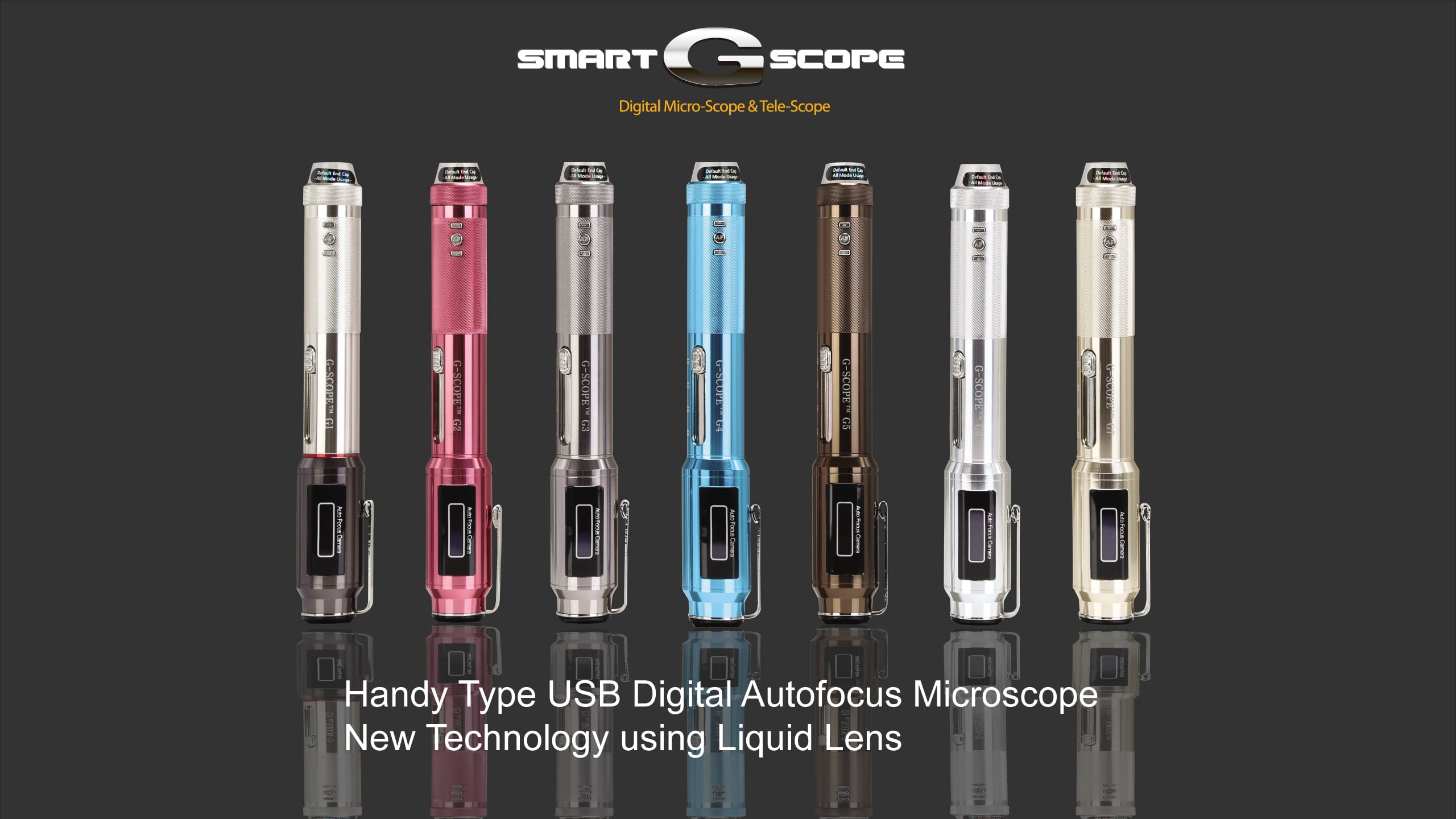

Smart G-Scope + G-Scope Desktop
The professional USB microscope that focuses for you.
Smart G-Scope combines Corning® Varioptic® liquid-lens autofocus with G-Scope Desktop. Click to focus, capture more depth, measure and create reports in one workflow.
Smart G-Scope · €699 incl. VAT
Ships from Spain · 2-year EU warranty
G-Scope Desktop Pro unlocks automatically while your Smart G-Scope is connected. No extra license or subscription. Windows, macOS and Linux.
Click where you want it sharp.
Enable Point focus and click a detail in the live image. The liquid lens adjusts focus without moving the microscope or turning a focus wheel.
EDOF
More of your specimen in focus. Automatically.
Extended depth of field (EDOF) combines photographs taken at different focus positions into one image, revealing more of an uneven surface.
Keep the specimen still during capture. EDOF extends focus; it does not create a 3D model.
EDOF capture →

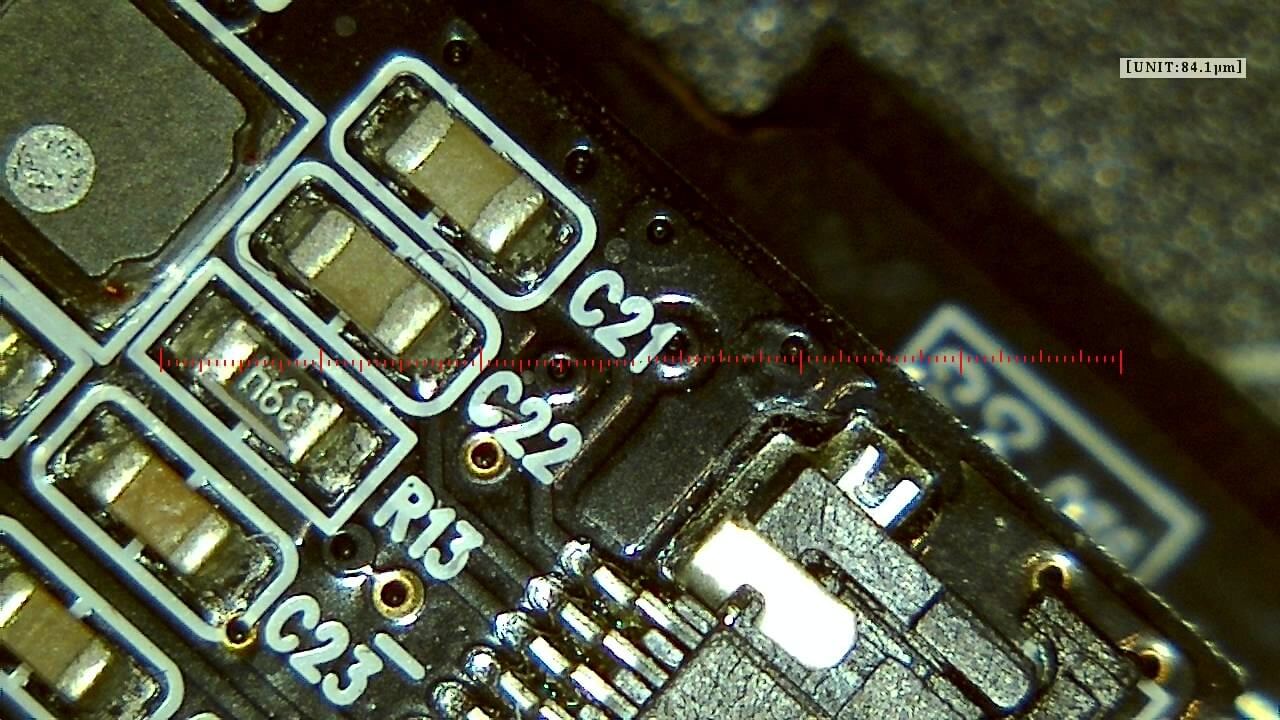

From a sharp image to a calibrated measurement.
G-Scope Desktop reads the Smart G-Scope optical state and updates the image scale in supported calibrated modes. Measure distances and areas; use manual calibration outside the calibrated range.
Calibration →A complete microscopy workstation. Included.
Go from inspection to documentation with calibrated measurements, EDOF, panorama stitching, OME-TIFF archives and PDF or PowerPoint reports.
G-Scope Desktop Pro unlocks automatically while your Smart G-Scope is connected. No extra license or subscription. Windows, macOS and Linux.

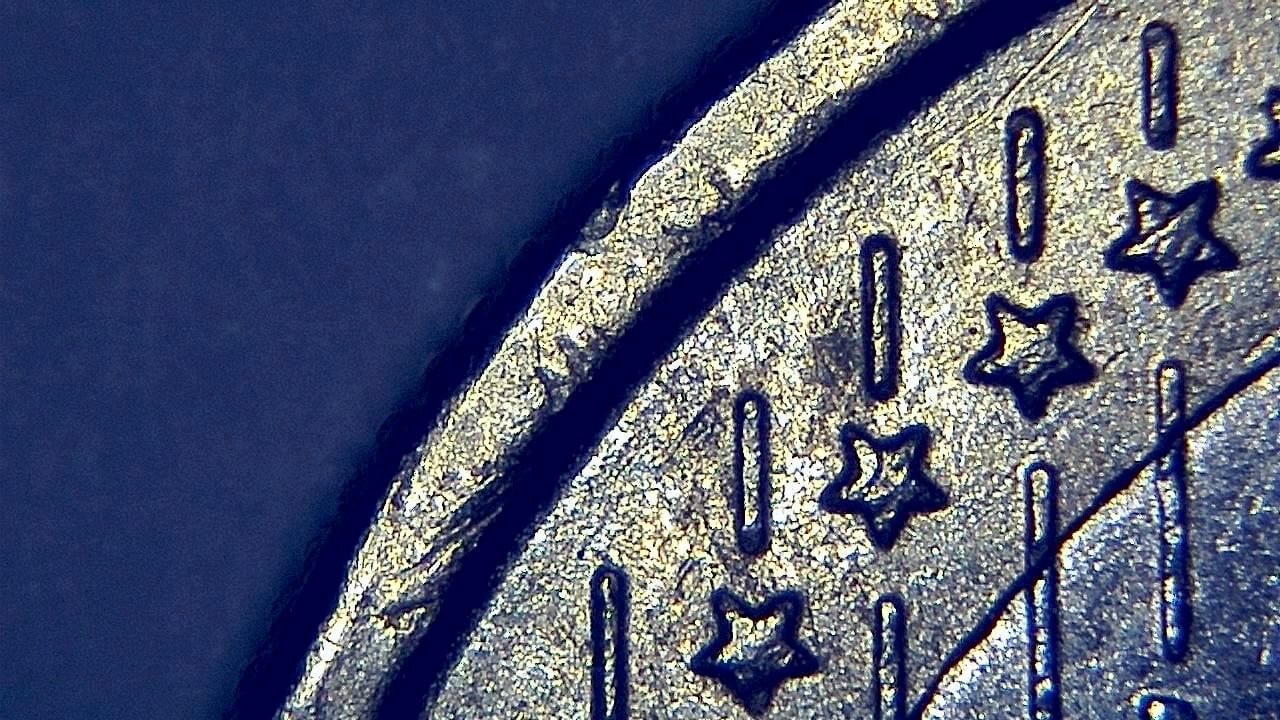

Inspect the actual images before you buy.
Real Smart G-Scope captures from our sample gallery. Open the original files at full resolution and judge the detail for your application.

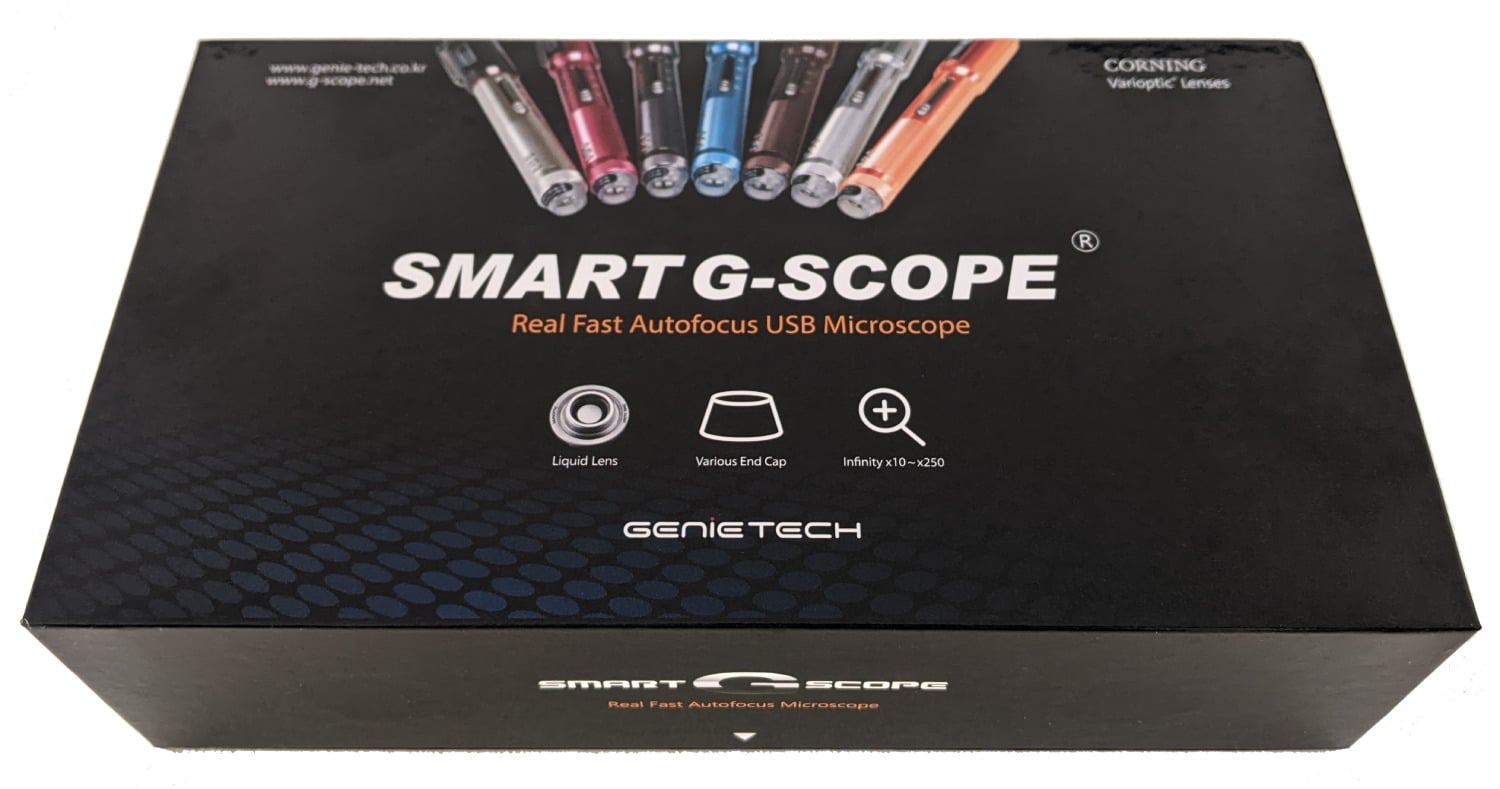

What comes with the standard package?

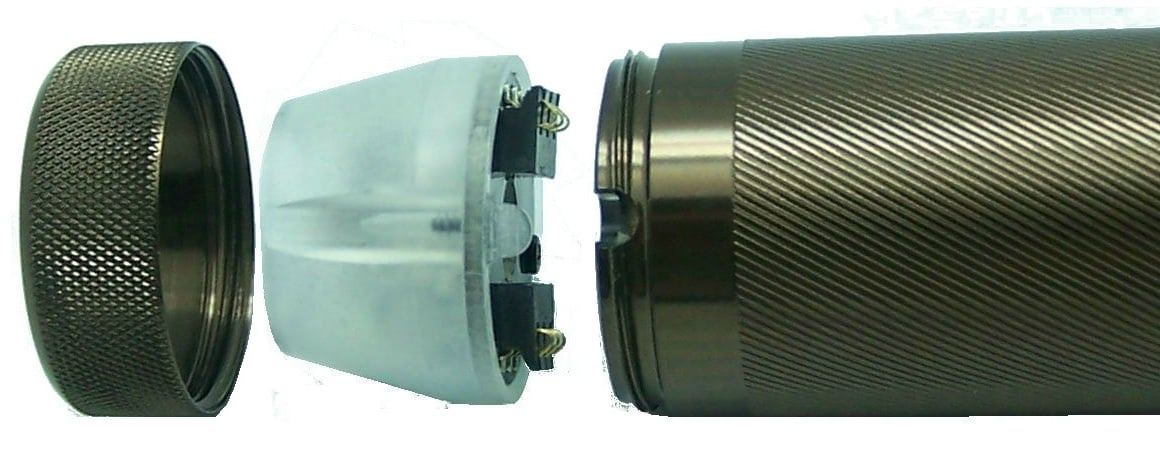

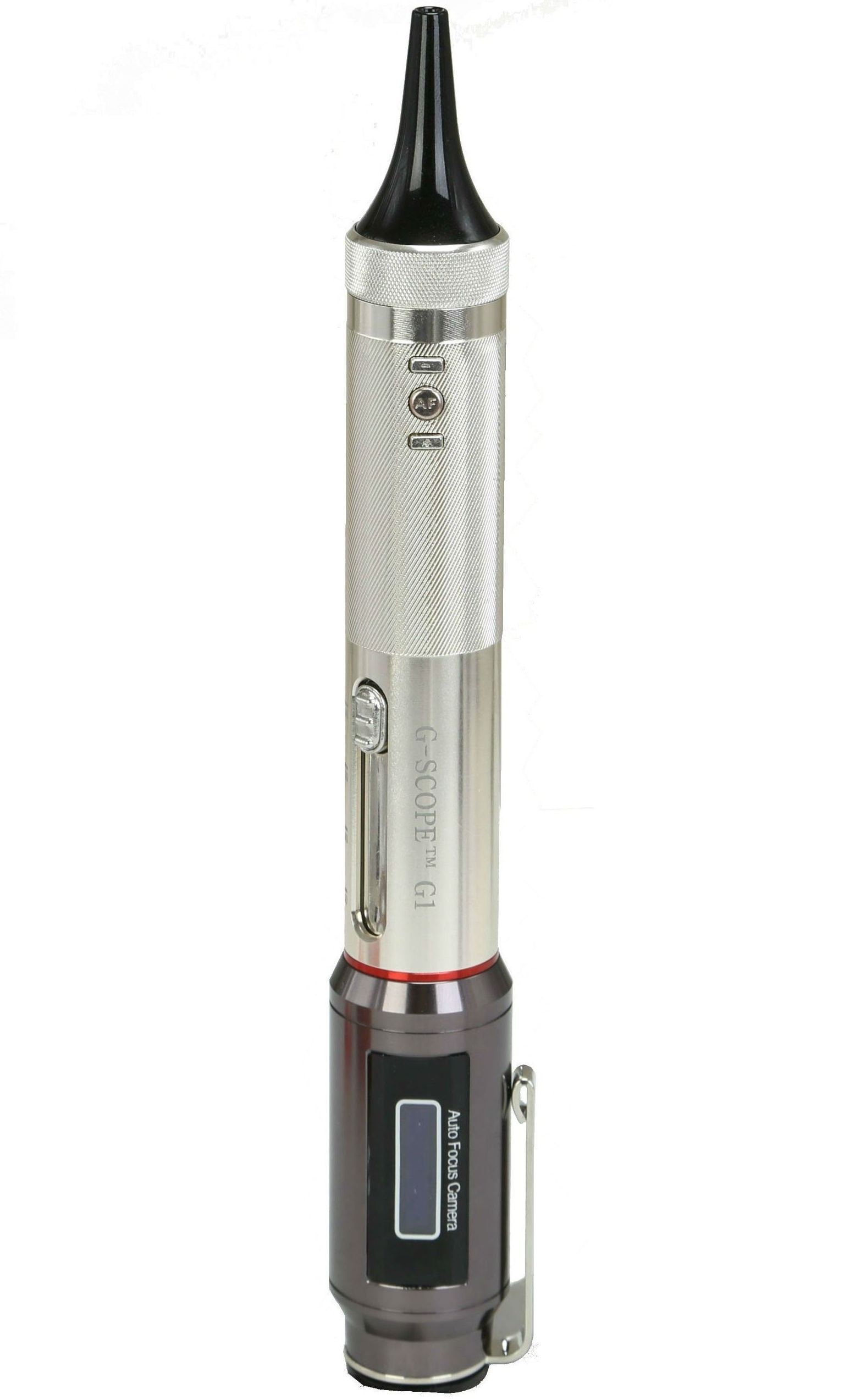

Smart G-Scope microscope, USB-C cable with USB-A adapter, remote control, basic and 3pi end caps, carry box, quick manual and cleaning cloth. Download G-Scope Desktop; Pro unlocks while the microscope is connected.

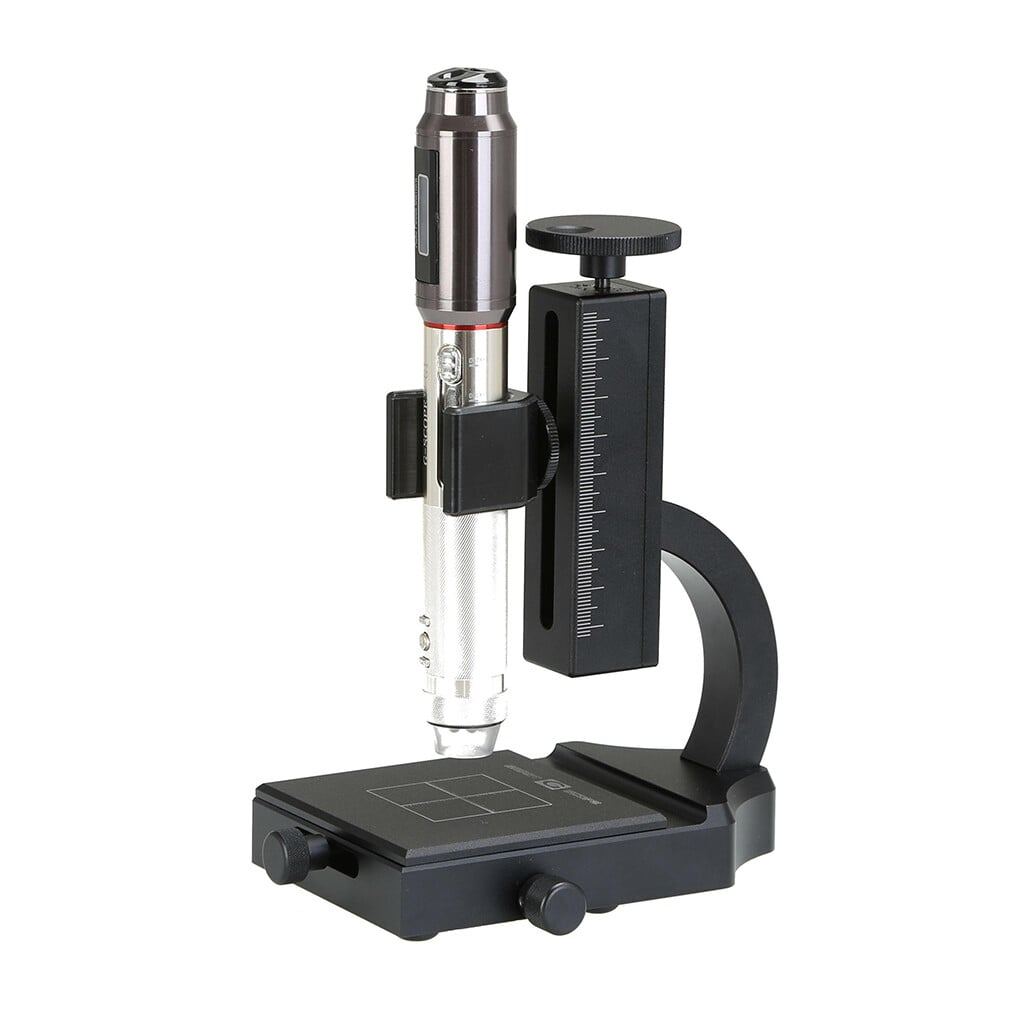

Stand shown is optional and is not included in the standard package.
Choosing between Smart G-Scope and Dino-Lite?
Compare magnification modes, focusing, image resolution and EDOF to find the right microscope for your work.
Choose the professional workflow you need
Specialized guidance, accessories and support for work that needs repeatable images.
Industrial inspection
PCB and quality control
Inspect solder joints, components and surface details with stable positioning, autofocus and clear documentation.
Explore PCB inspection →Laboratory and education
Observe, capture and explain
Bring live Full HD observation and repeatable image capture to teaching and laboratory workflows.
Explore education →Nailfold capillaroscopy
A dedicated clinical solution
Visit Capillary.io for the specialized capillaroscopy package, software and clinical resources.
Visit Capillary.io →Evaluate it with your real work
Send us your sample. We will inspect it with Smart G-Scope.
Tell us what you need to inspect and send a representative PCB, printed part, material, component or other suitable sample after we confirm the shipment. We will choose appropriate magnification and lighting, capture representative images or video, and share the results so you can judge the optical detail and workflow before buying.
1. Describe the sample
Tell us its size, material and the detail or defect you need to see.
2. Confirm shipment
We confirm suitability and shipping instructions before you send anything.
3. Review real results
We capture representative Smart G-Scope images or video and share them with you.
Please contact us before shipping a sample. We will agree handling and return arrangements first.
See it in action
Capture. Measure. Document.
See G-Scope Desktop move from a microscope image to measurements, annotations and a report. Start with the free software for compatible USB and Wi-Fi microscopes.
Download G-Scope Desktop for free
How it works
Advanced technology in a compact, easy-to-use format
Connect via USB
Plug-and-play with no additional drivers required. Compatible with USB 2.0/3.0 and USB-C. UVC (USB Video Class) standard.
Quality optics + Full HD
High-quality lenses deliver useful optical detail; the Full HD sensor records it at up to 30fps.
Autofocus
Fast automatic focus using the device button, remote control or software button.

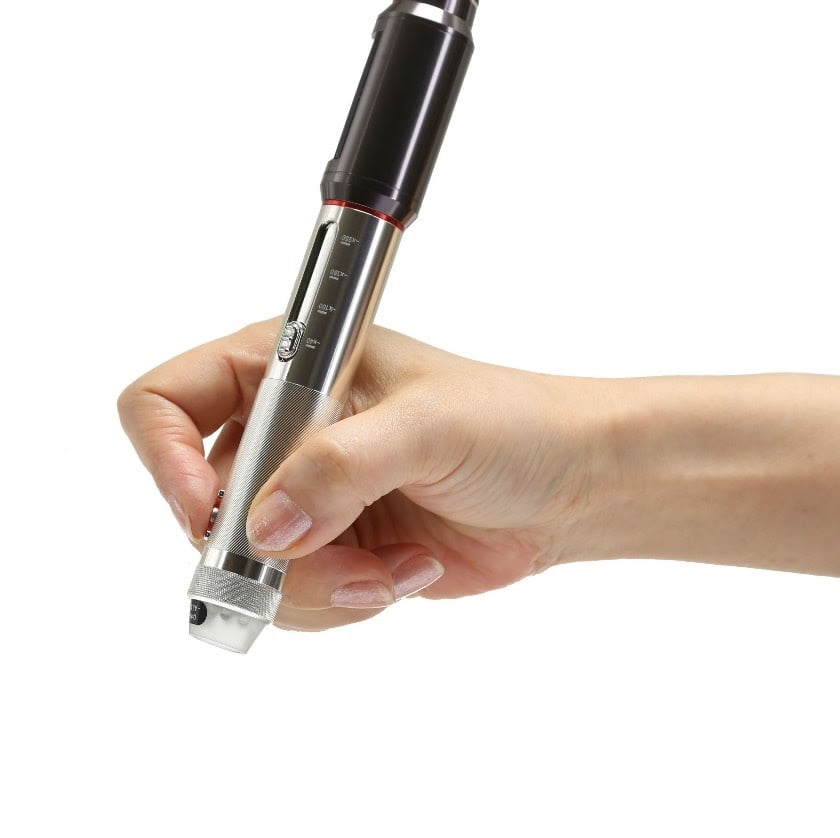

Portable and robust
Only 88g in weight, aluminum alloy housing and protected optics for intensive use.
What makes us different
Details that matter in day-to-day professional work

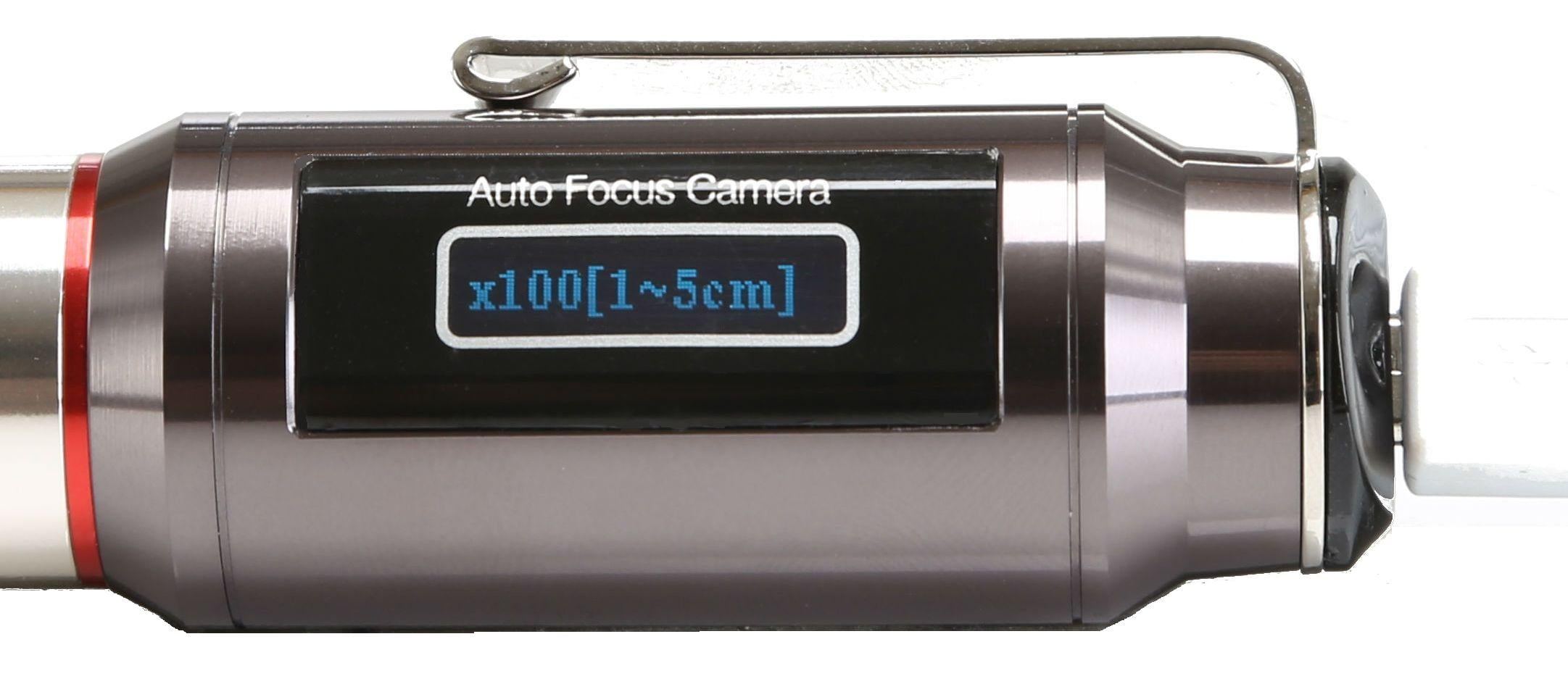

Built-in OLED display
The integrated OLED shows the current magnification in real time directly on the device, so you can work without constantly relying on the software.
Four quick magnification levels
Move quickly between defined 40x, 100x, 180x and 250x working levels while the OLED confirms the active magnification.
- 40×
- 3 cm to infinity
- 100×
- 1–4.5 cm
- 180×
- Contact to 1.7 cm
- 250×
- Contact to 0.8 cm
Working distance is measured from the tip of the end cap to the object, not from the microscope body or the stand.
See magnification and working distances →Full device control

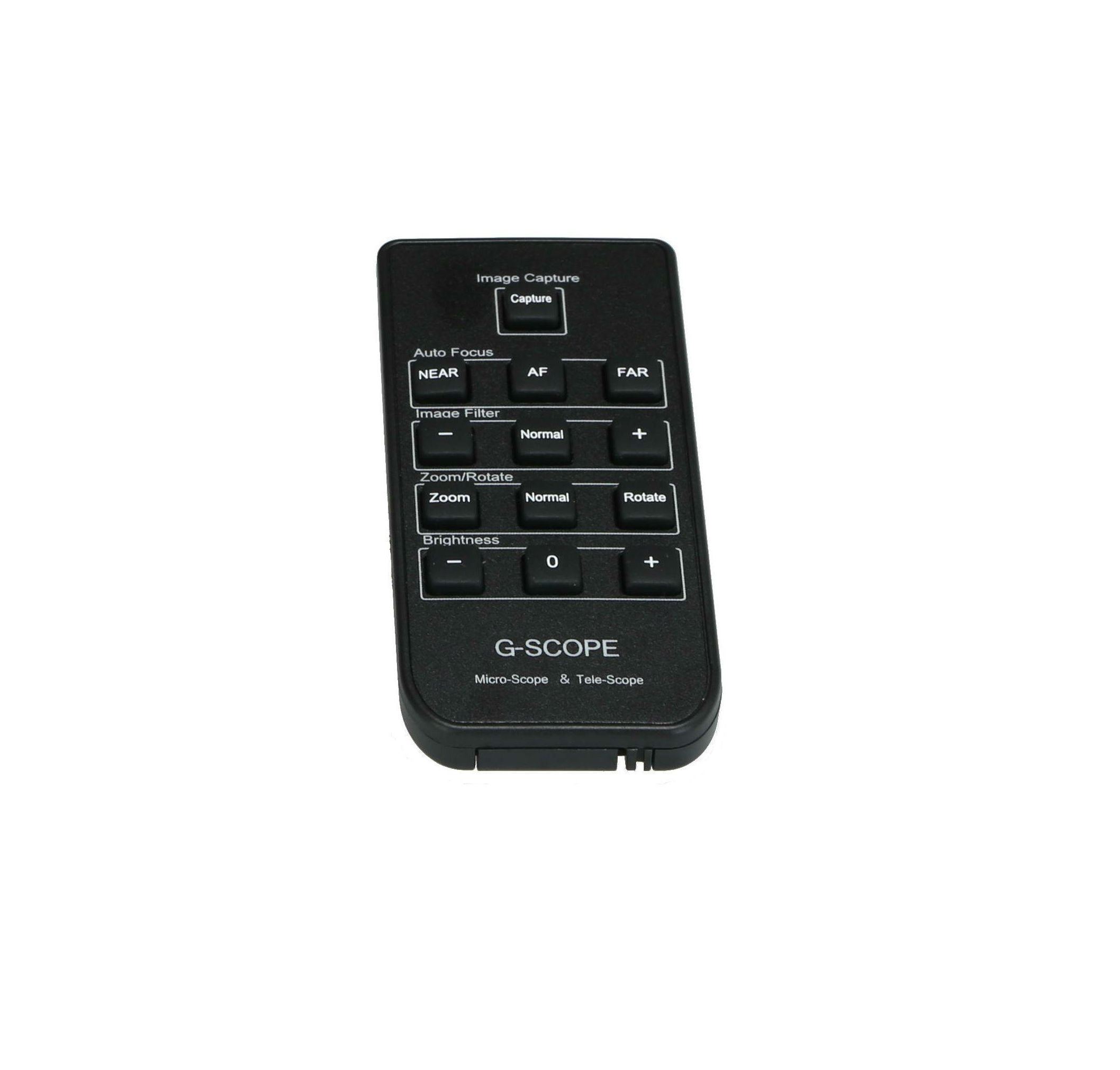

Control focus, illumination, and capture using the on-device button, the included remote control, or the software, whichever suits your setup.

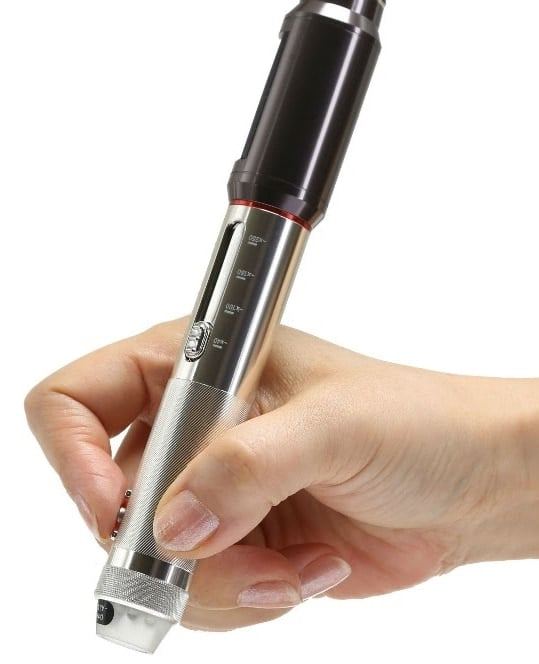

Image gallery

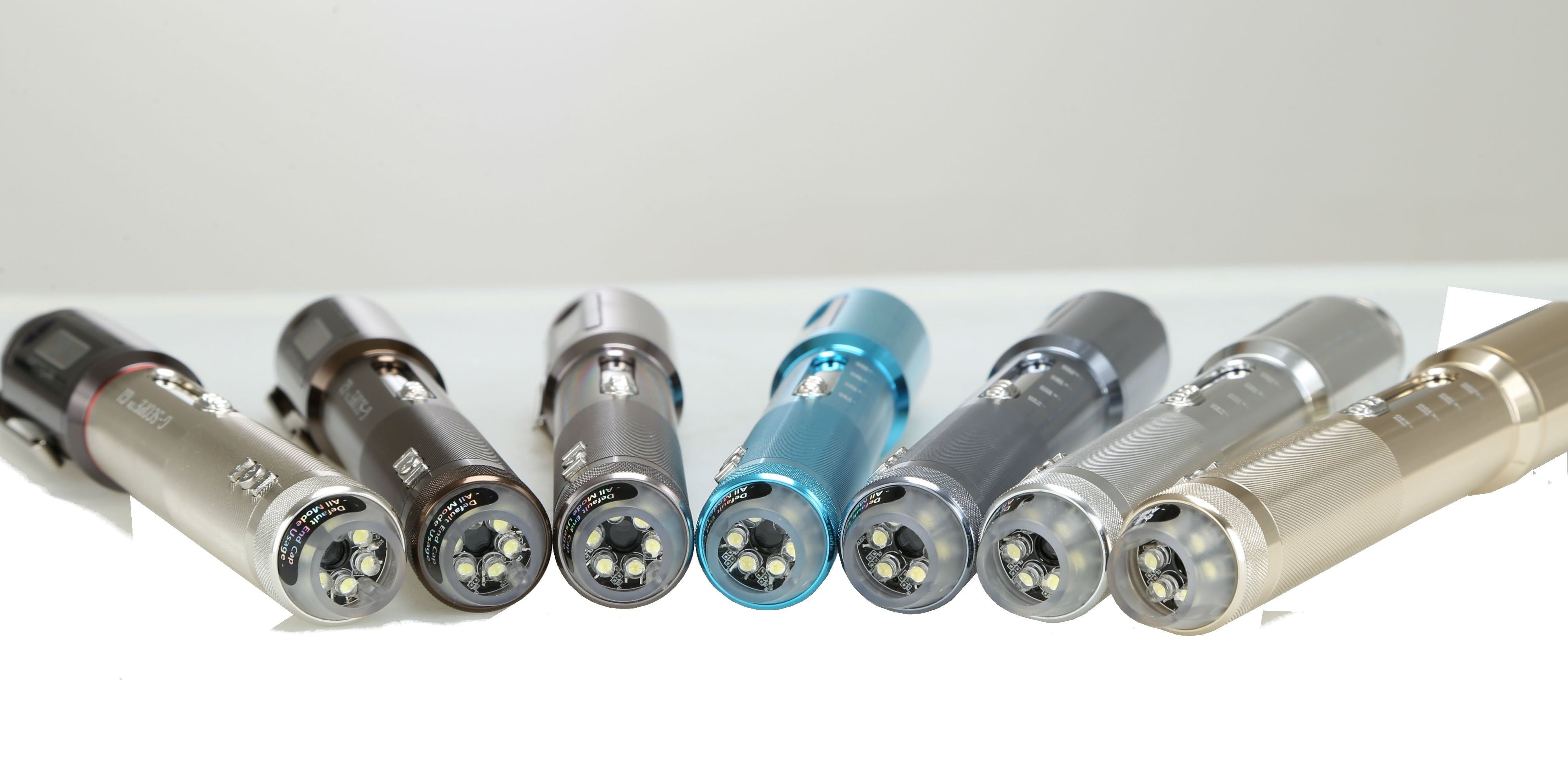

Photos of Smart G-Scope in detail and in use
Trusted by professionals
Used in real-world professional environments worldwide
✔ Developed and manufactured by Genie Tech Inc. (South Korea), specialists in optics and autofocus technology since 2010.
✔ Corning® Varioptic® “liquid” lens technology with autofocus, used in clinical, industrial, and research environments.
✔ Distributed in Europe with local support and specialized assistance.
✔ Compliant with CE requirements and international standards.
Use cases
Smart G-Scope adapts to multiple professional sectors
Electronics/PCB

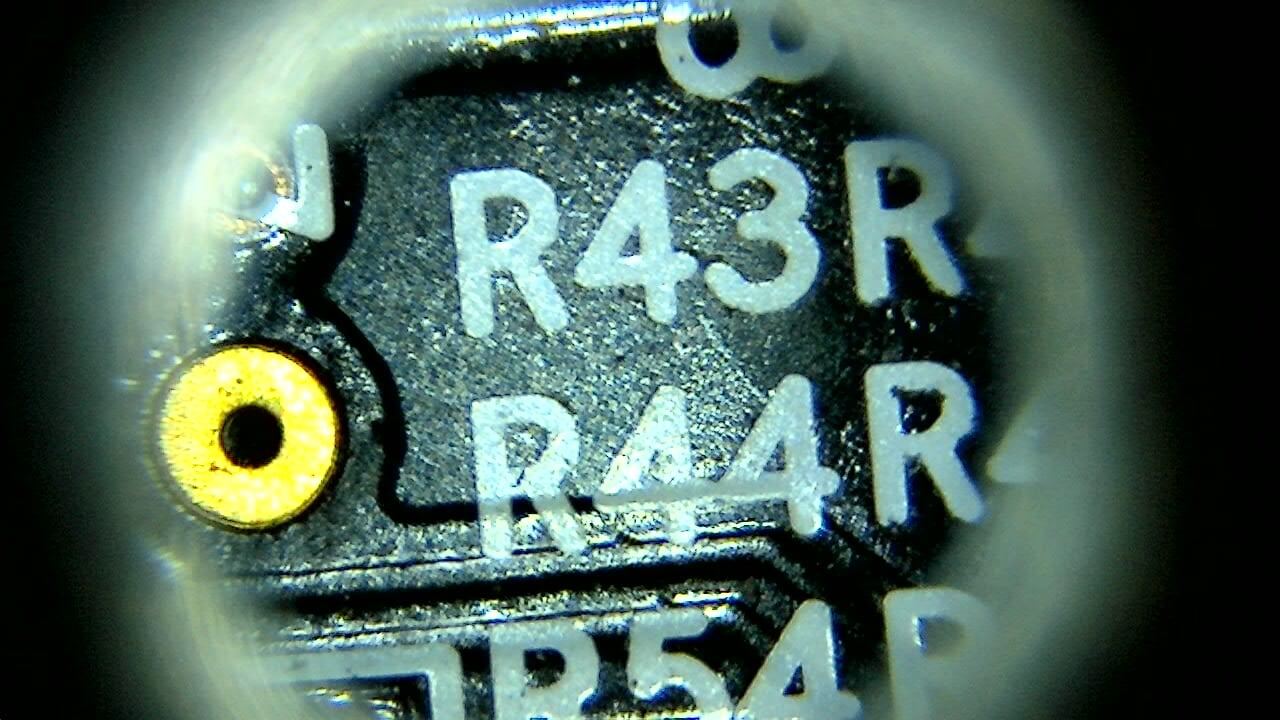

Inspection of solder joints, components, and defects on printed circuit boards.
Education
Accessible microscopy for science labs, biology, geology, and teaching research projects.
Quality Control
Fast, accurate inspection of surfaces, parts, and assemblies to catch defects before they reach the customer.
Practical guides
Buying guides and inspection checklists to help you choose the right Smart G-Scope setup for PCB inspection, jewelry, education, and 3D printing.
6 min
How to Choose a USB Microscope for PCB Inspection
What actually matters for PCB inspection: stability, working distance, autofocus behavior, lighting control, and easy image capture.
6 min
Choosing a Microscope for Jewelry Inspection and Watchmaking
How jewelers and watchmakers should compare digital microscopes for hallmark reading, stone inspection, prong checks, and clear image capture.
6 min
How to Choose a USB Microscope for STEM Classrooms and Universities
A practical buying guide for teachers and lab coordinators evaluating digital microscopes for demos, shared workstations, and student use.
6 min
USB Microscope for 3D Printing Quality Control
What to look for when inspecting FDM and resin prints: layer definition, surface defects, edge quality, and clear visual records.
Ready to start working
G-Scope Desktop Pro unlocks automatically while your Smart G-Scope is connected. No extra license or subscription. Windows, macOS and Linux.
Key specifications
Professional performance in every detail
- Sensor
- 3.5 megapixel CMOS
- Magnification
- 40x, 100x, 180x and 250x
- Lens
- Corning® Varioptic® Liquid Lens
- Focus
- Fast autofocus (device button, remote control and software)
- Illumination
- White LED with on/off control
- Video
- 30fps, AVI (up to 1920×1080)
- Compatibility

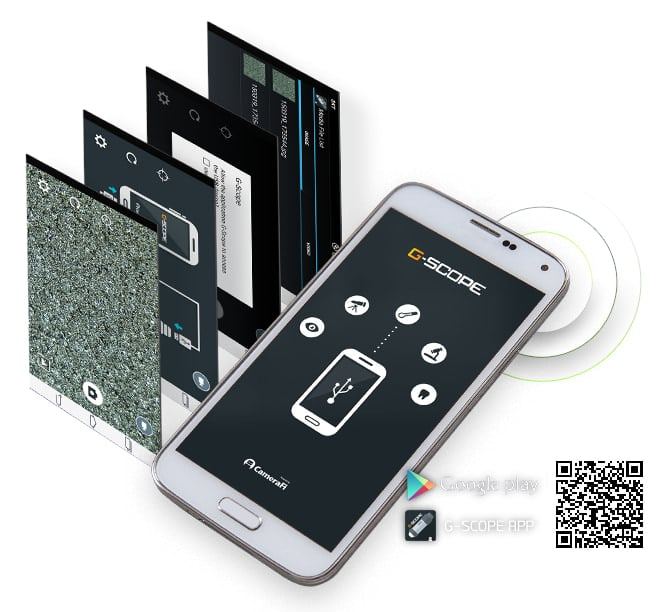

- UVC: Windows, macOS, Linux, Android
- Dimensions
- 175mm × 25mm
- Remote control
- Included
Accessories
Optional accessories for every application
Smart G-Scope software
G-Scope Desktop Pro unlocks automatically while your Smart G-Scope is connected. No extra license or subscription. Windows, macOS and Linux.
Try Smart G-Scope in your environment
Send us a representative sample and review real Smart G-Scope images before deciding.
